GPS Tracking Devices

Our trackers are versatile devices with great support for external input devices and sensors.It is designed to service a wide variety of market and industry requirements. Features advanced technology that will last for years.

GPS Tracker Comparison Guide for Fleet Management

Feature Hardwired TLW2-6BL Hardwired TLW2-12BL TLW2-12B
Image & Pricing TLW2-6BL
99.00
Compact Essential Tracker
TLW2-12BL
119.00
Enhanced Connectivity Tracker
TLW2-12B
150.00
Premium Long-Life Tracker
Best For
All fleet types requiring reliable tracking and monitoring - our most popular solution for general fleet management
All fleet types needing additional input/output capabilities: connect to sensors, monitor doors/temperature/fuel, or control multiple vehicle systems
Assets requiring extended monitoring without frequent charging
Key Advantages & Limitations
Advantages
  • Most compact option
  • Cost-effective
  • Simple installation
  • Additional I/O options
  • More configurable inputs
  • Compact size with enhanced features
  • Extended battery life
  • Better waterproofing (IP67)
  • Maximum I/O options
  • Enhanced GNSS support
Limitations
  • Fewer I/O options
  • Small battery capacity
  • Requires consistent power (hardwired to vehicle's battery)
  • Small battery capacity
  • Requires consistent power (hardwired to vehicle's battery)
  • Larger size & weight
  • Higher cost
Recommendations Recommended for all fleet types needing standard tracking functionality: location monitoring, geofencing, speeding alerts, and basic driver behavior analysis. Most cost-effective solution for basic fleet management needs. Ideal when additional inputs/outputs are needed: connect to door sensors, temperature monitors, fuel level sensors, or control multiple accessories like buzzers or LED indicators while maintaining the same compact form factor. Best for trailers, heavy equipment, remote assets, and situations where charging access is limited.
Features
Driver Behavior Monitoring Yes Yes Yes
Crash Detection Yes Yes Yes
Towing Alarm Yes (6-axis accelerometer) Yes (6-axis accelerometer) Yes
Temperature Sensor Internal Internal Internal
Jamming Detection Yes Yes Yes
Input & Output
Digital Inputs 2 (ignition + panic button) 3 (ignition + panic button + RPM) 3
Digital Outputs 1 for relay control 2 for relay or accessory control 3 for relay or accessory control
Configurable Inputs 1 3 3
Physical Specifications
Dimensions 4.04" × 1.67" × 0.47" 4.04" × 1.67" × 0.47" 5.2" × 3.93" × 1.34"
Weight 55g (1.94oz) 55g (1.94oz) 320g (11.3oz)
Waterproof Rating IP65 (protected against dust and water jets) IP65 (protected against dust and water jets) IP67 (fully protected against dust and temporary immersion)
Connectivity
Network LTE Cat M1/NB2, GSM/EDGE LTE Cat M1/NB2, GSM/EDGE LTE Cat M1/NB1, EGPRS
GNSS Support GPS+Glonass or GPS+Beidou GPS+Glonass or GPS+Beidou GPS+Glonass+Galileo+Beidou
Position Accuracy < 2.5m < 2.5m < 2m
BLE Support BLE 5.0 BLE 5.0 BLE 5.0
Power & Battery
Battery Capacity 200mAh Li-Polymer 200mAh Li-Polymer 9600mAh Li-ion
Operating Voltage 7V to 60V DC 7V to 60V DC 7V to 60V DC
Battery Life Requires regular external power Requires regular external power
  • 10 min reporting: 320 days
  • 5 min reporting: 170 days
  • 1 min reporting: 68 days

All models include:

  • Scheduled position reporting (time, angle, distance)
  • External power status monitoring
  • Low power alerts
  • Speeding alarms
  • Remote control capabilities
  • Data roaming control
  • Protocol support: TCP, UDP, MQTT, SMS
  • Security: MD5/AES128 encryption

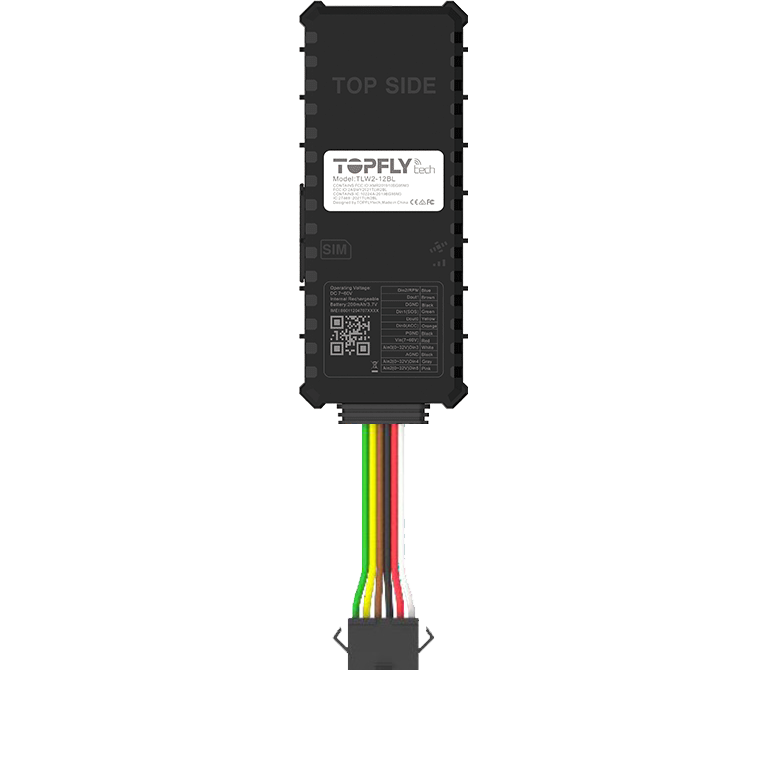

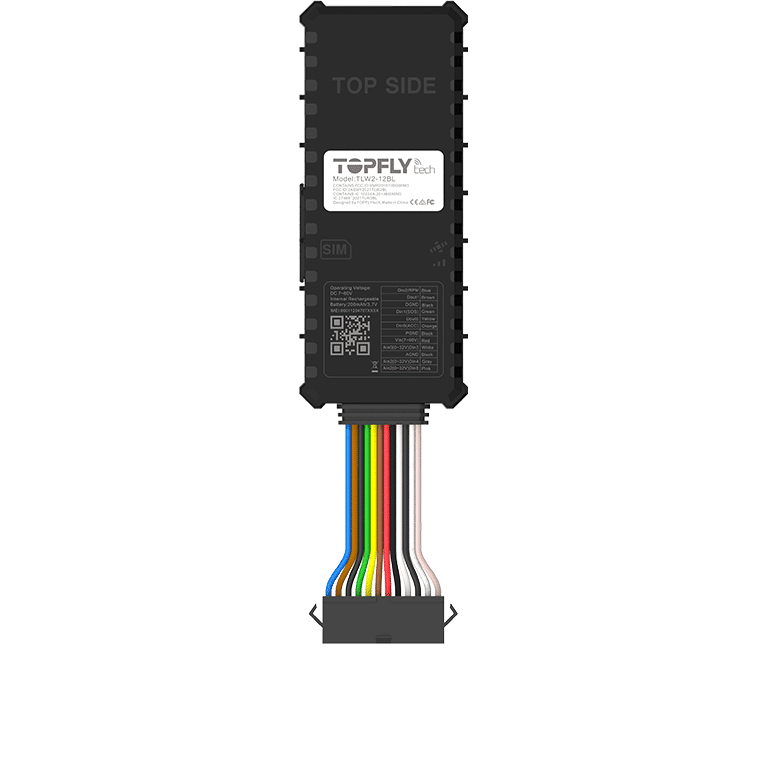

Hardwired TLW2-6BL/12BL

  • Compact Size
  • Easy Installation
  • Motion Detection
  • LTE Cat-M1
  • Multiple I/Os
  • Digital Output (1/2)
  • Internal Antenna
  • LED Indicator
  • Waterproof (IP66)
  • Dimensions:102.5mm*42.5mm*12mm (4.04” 1.67” *0.47”)
  • Weight:55g (1.94oz)
  • Backup Battery
  • Operating Voltage: 7V to 32V DC
  • Operating Temperature: -22 F - 176 F
  • Geo-fence Alarm
  • Ignition On/Off Alarm
  • Driver Behavior Monitoring
  • BLE 5.0 for sensors
  • Disconnection alerts

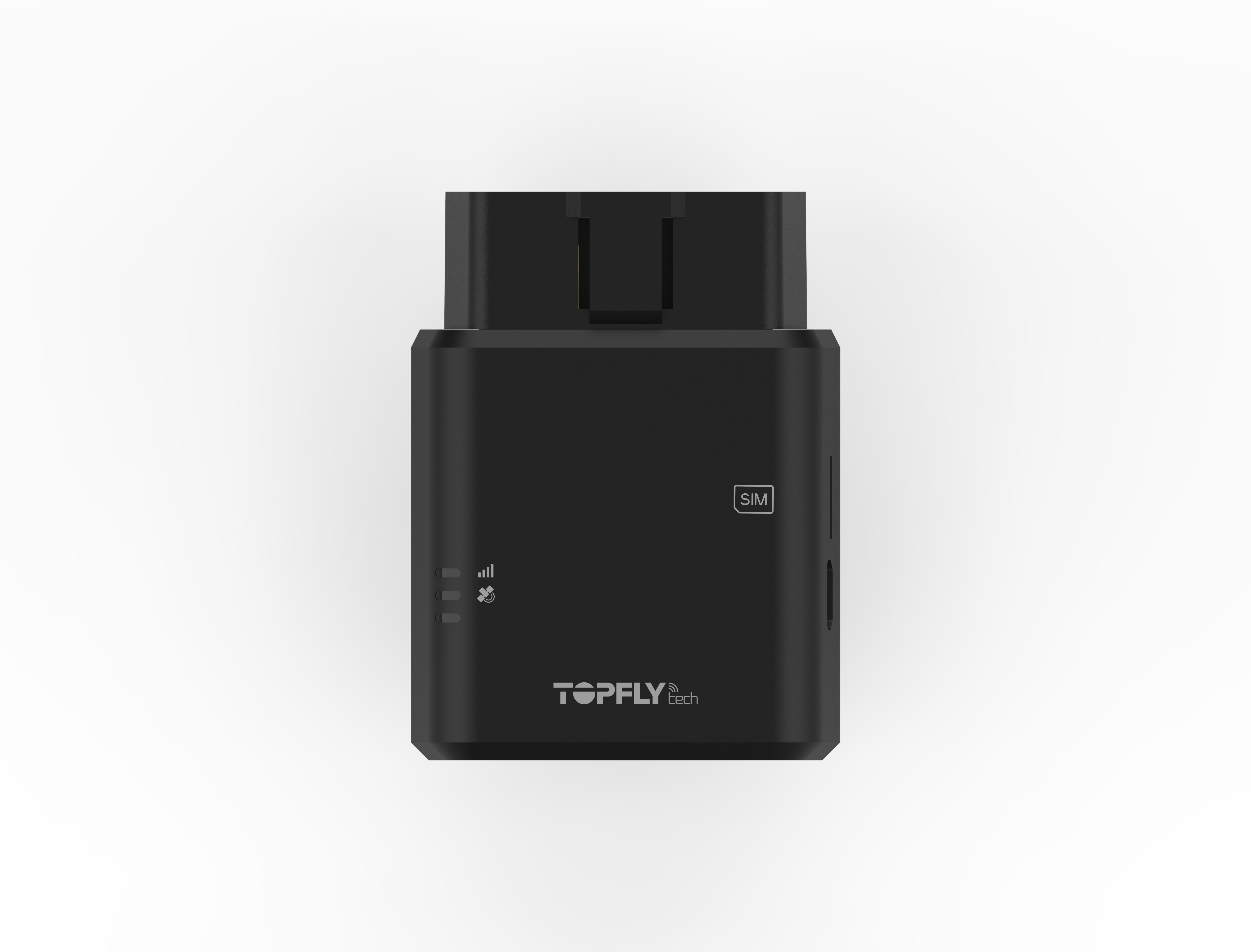

OBDII

  • Compact Size
  • Plug and Play
  • Motion Detection
  • LTE Cat-M1
  • Connector: OBDII
  • Easy Installation/Removal
  • Internal Antenna
  • LED Indicator
  • Designed for Insurance
  • Dimensions:63mm*47mm*20mm (2.48” 1.85” *0.79”)
  • Weight: 50g
  • Backup Battery
  • Operating Voltage: 7V to 32V DC
  • Operating Temperature: -22 F - 176 F
  • Geo-fence Alarm
  • Driver Behavior Monitoring
  • BLE 5.0 for sensors
  • Disconnection alerts

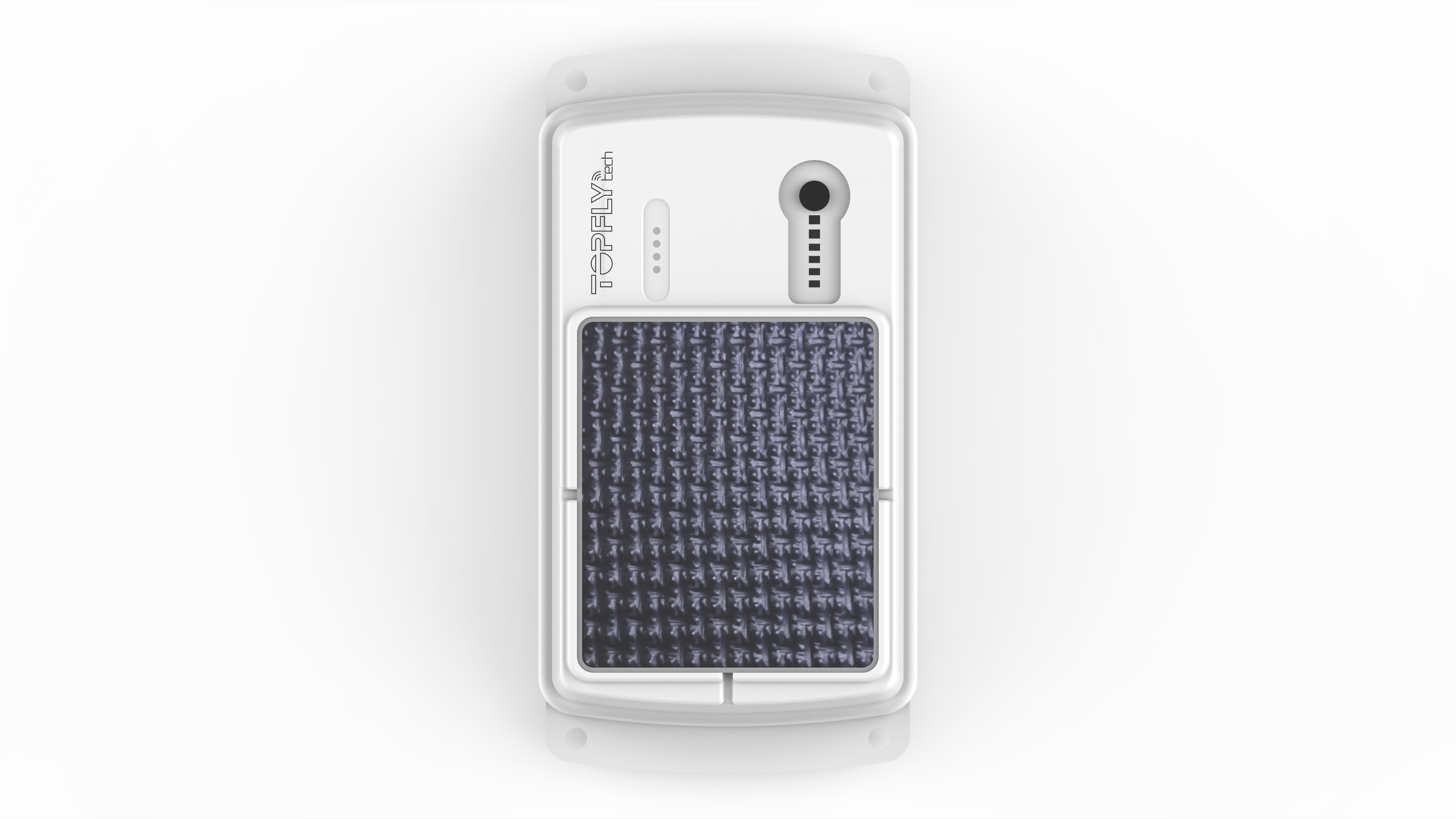

Assets

  • Compact Size
  • Easy Installation
  • Solar Panel
  • Motion Detection
  • LTE Cat-M1
  • Light Sensors
  • Internal Antenna
  • Waterproof (IP67)
  • Dimensions: 69.3mm*143mm*24.8mm
  • Weight: 210g
  • Rechargable Battery
  • Mounting: Magnet / Screw
  • Operating Temperature: -4°F ~ 140°F
  • Geo-fence Alarm
  • Motion Detection
  • Rugged construction
  • Long life battery
  • Data Securyty (MD5/AES)
  • MQTT Support

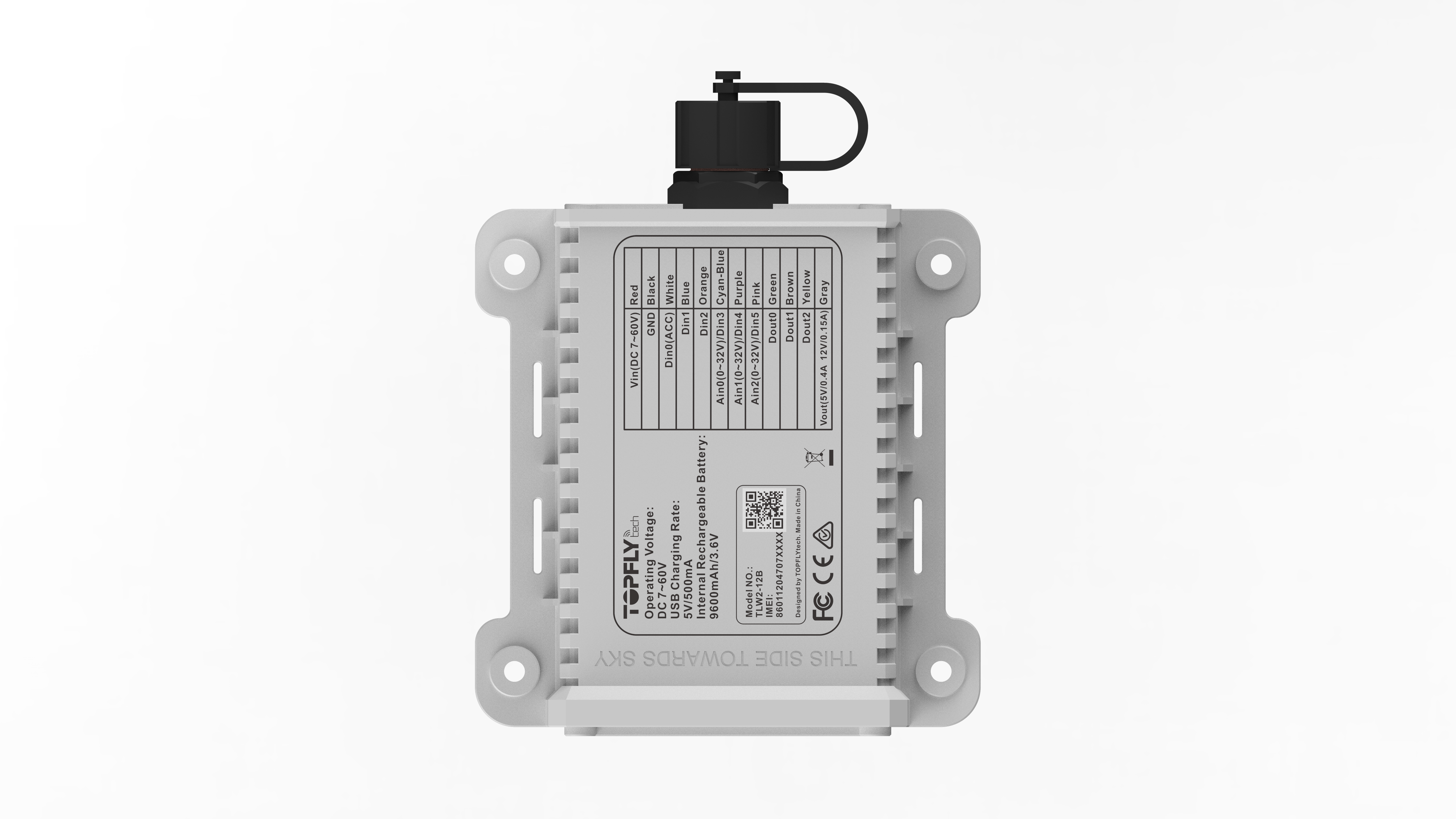

TLW2-12B

  • Easy Installation
  • LTE
  • Internal 3-axis accelerometer
  • Easy OTA Servicing
  • Digital 3 Input/ 3 Output
  • Internal Antenna
  • Dimensions: 4.1 x 3.7 x 1.1 inches
  • Weight: 4 oz, 114 gr
  • Backup Battery
  • Operating Voltage: 8V to 30 V DC
  • Geo-fence Alarm
  • Driver Behavior Monitoring
  • BLE 5.0 for sensors
  • Rugged construction
  • IP67 waterproof

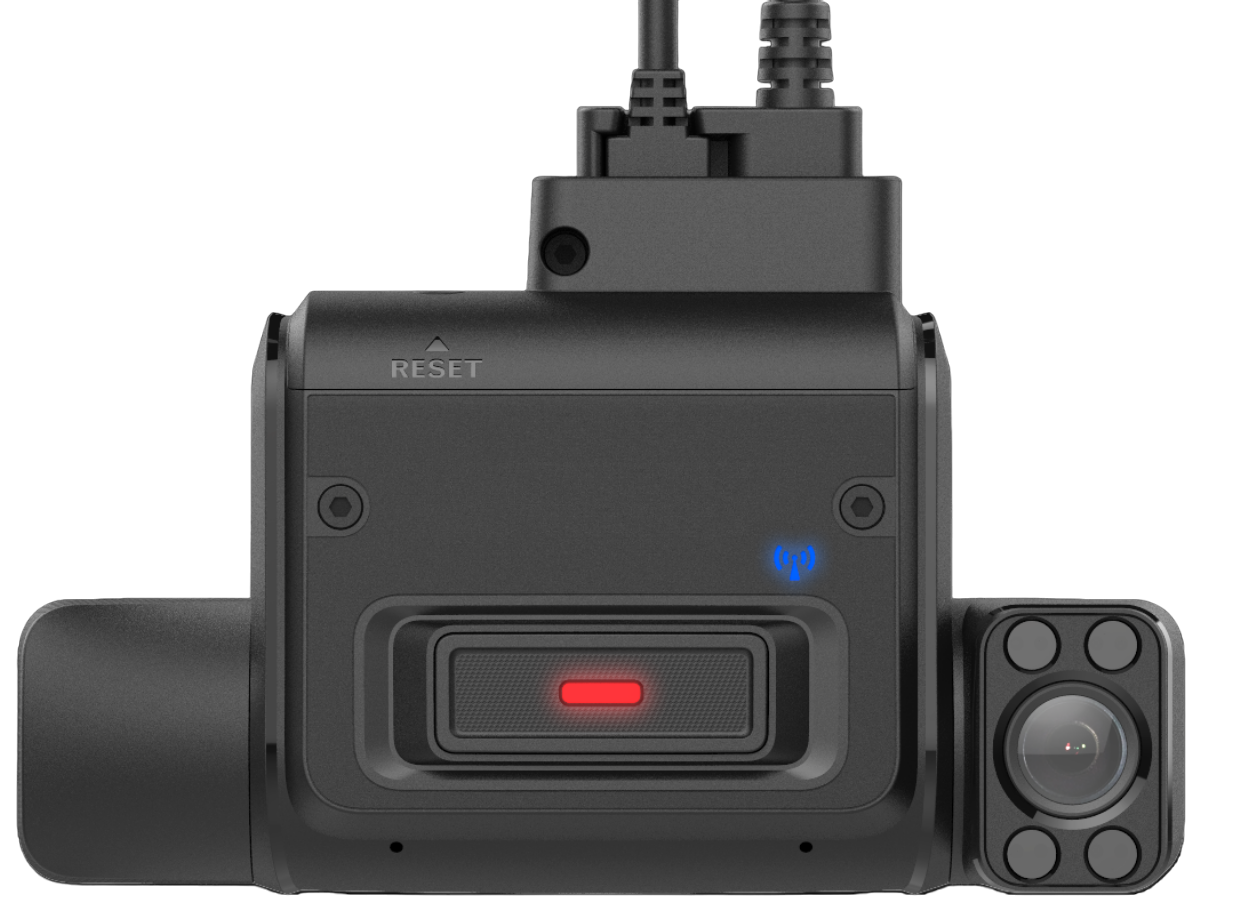

Dash Cam

  • ADAS
  • DMS
  • Full HD video recording
  • G-sensor events
  • GPS tracking
  • Live streaming
  • Loop recording (DVR)
  • Positive recognition

EASY OVER THE AIR SERVICING

Configuration parameters and firmware are upgradeable over-the air using IP or text messaging or autonomously pulled from any TFTP or FTP server; this allows feature updates to be deployed to a fleet in a very efficient manner.

MONITOR DRIVERS BEHAVIOR

Ability to detect the most important bad-behaviors of drivers, including: Accelerations, Sudden Decelerations, Harsh Brakes, and Harsh Turns. Every time the device detects any of these behaviors, it triggers events that are sent to our system where the data is collected and reported to you immediately.

SUPER HIGH GAIN INTERNAL ANTENNA

The antennas of our GPS device are internal. This facilitates incredibly the installation process, while providing an outstanding sensitivity that gives very accurate location information.


INPUT/OUTPUT AND PERIPHERAL SUPPORT

I/O capabilities enable multiple configurations, peripheral support and monitoring including digital inputs and outputs

USES THE BEST NETWORK

Offers the best coverage that will be around for years to come.
